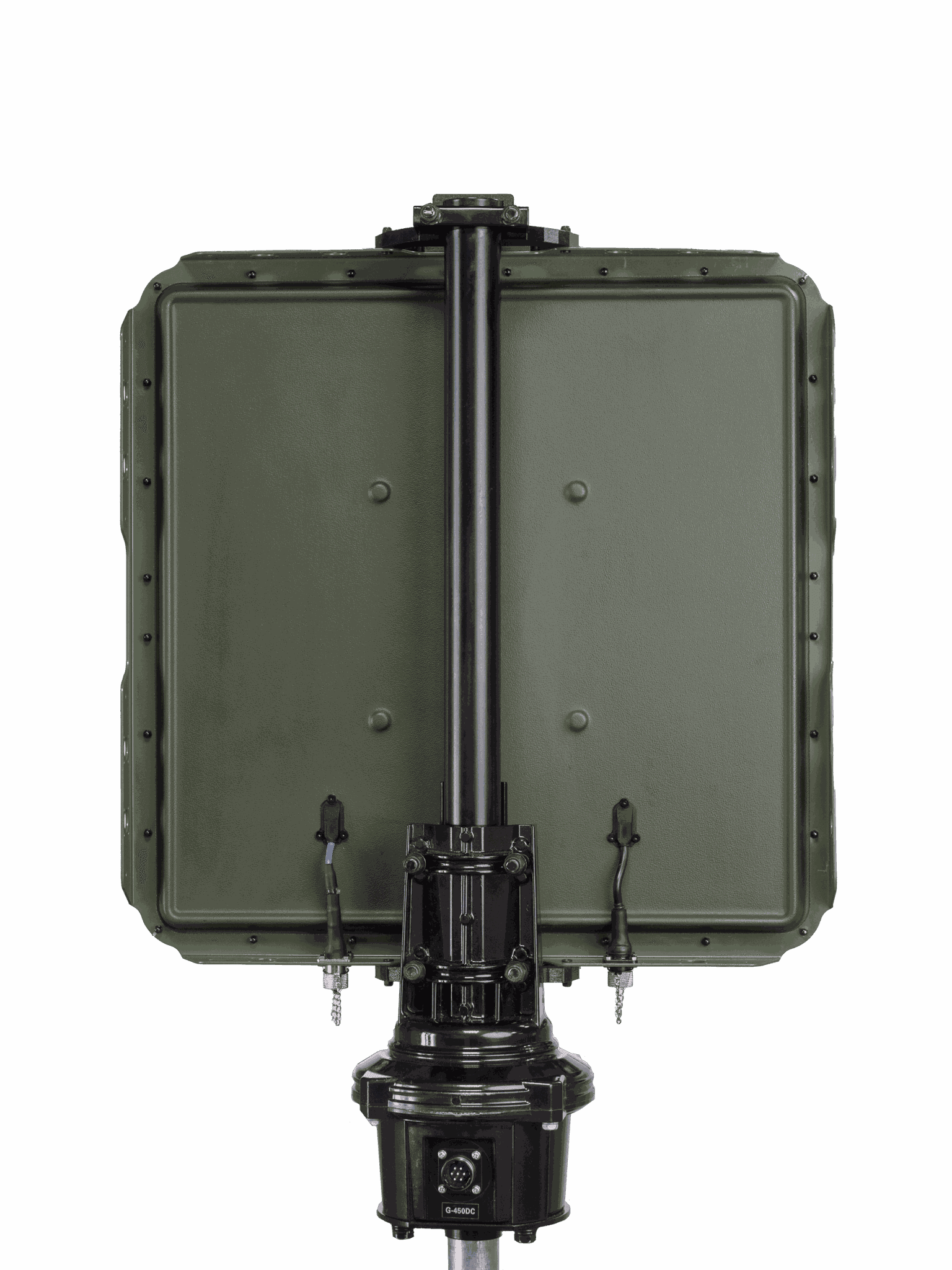

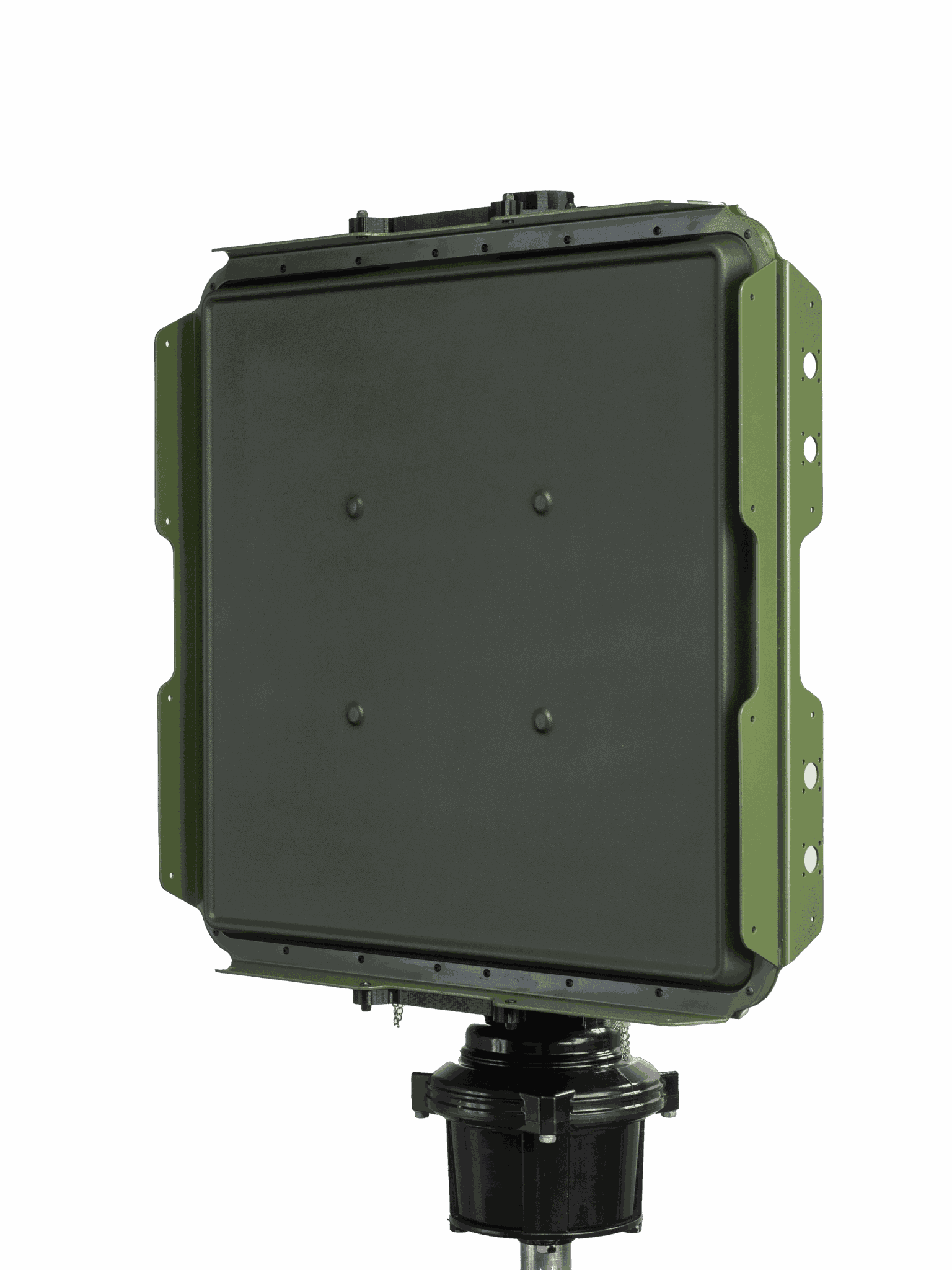

COBRA XL-V 24 — remote antenna 2.4 GHz
Highest gain in the range. Single-band, 2.4 GHz, 43 dBm, beam 13°. For long distances from a fixed position.
Key Advantages:
- Ultra-high power 20 W transmitter
- Maximum range in harsh EW conditions
- High antenna focus 21.7 dBi
- Single-frequency 2.4 GHz operation
- Extreme performance
Operating Frequency
2.4 GHz (2400-2480 MHz)
Gain 2.4 GHz
21.7 dBi
Beamwidth 2.4 GHz (3dB)
13°
Transmitter Power
43 dBm (20 W)
Specification
Technical Specifications
Operating Frequency2.4 GHz (2400-2480 MHz)
Gain 2.4 GHz21.7 dBi
Beamwidth 2.4 GHz (3dB)13°
Transmitter Power43 dBm (20 W)
EIRP63–65 dBm
Receive Gain10–12 dB
Noise Figure< 2.2–2.5 dB
TX/RX Switching Time< 1 µs
Polarisationlinear
Communication Range35+ km
System Weight5 kg
Protection RatingIP67
Operating Temperature-25°C to +55°C
Dimensions510 × 510 × 135 mm
Radiation Efficiency-0.3393 dB
Total Efficiency-0.3464 dB
Kit
System Components
Base configuration and available add-ons.
Base configuration
- Bidirectional amplification unit on 2.4 GHz: 43 dBm (20 W) transmit power, 10–12 dB receive gain, noise figure < 2.5 dB
- 2.4 GHz antenna array unit (21.7 dBi)
Additional Equipment
- HYDRA conversion for DJI RC PRO controller. Install cover with N-Type connector holders
- Coaxial cable, 20m or 30m (N-Male)
- System power cable PVS 2×1.5, 22 m
- Sealed power supply AC 220V/DC 12V 100W
- Telescopic aluminum mast complete with cables and transport cover
- YAESU G-450C rotation mechanism
- YAESU 25m or 35m rotation mechanism control cable
- Cable set carrying case
Additional
3D Antenna Radiation Patterns
Electromagnetic field distribution diagrams demonstrate high radiation focus with minimal energy loss

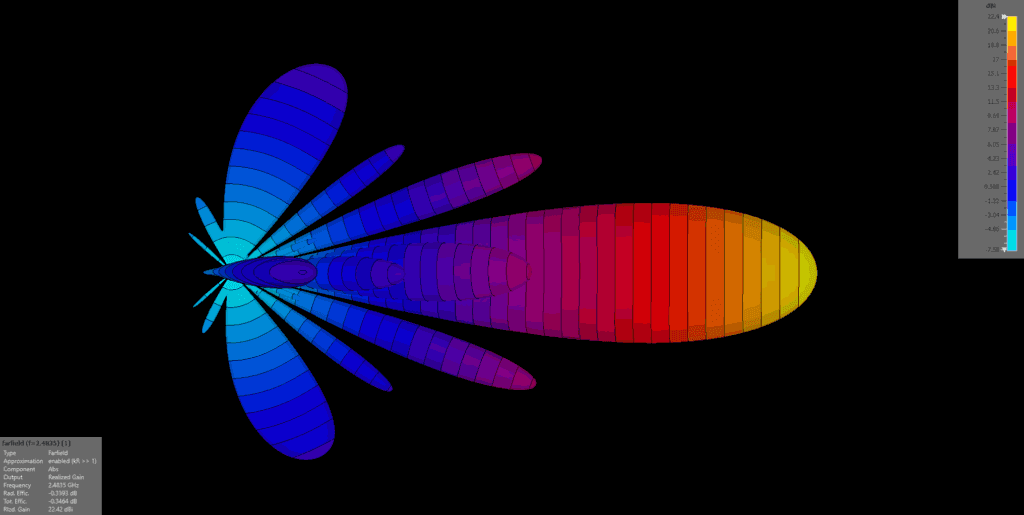

Діаграма спрямованості XL-V 24 (ракурс 1)
3D діаграма розподілу напруженості електромагнітного поля на частоті 2.4 ГГц

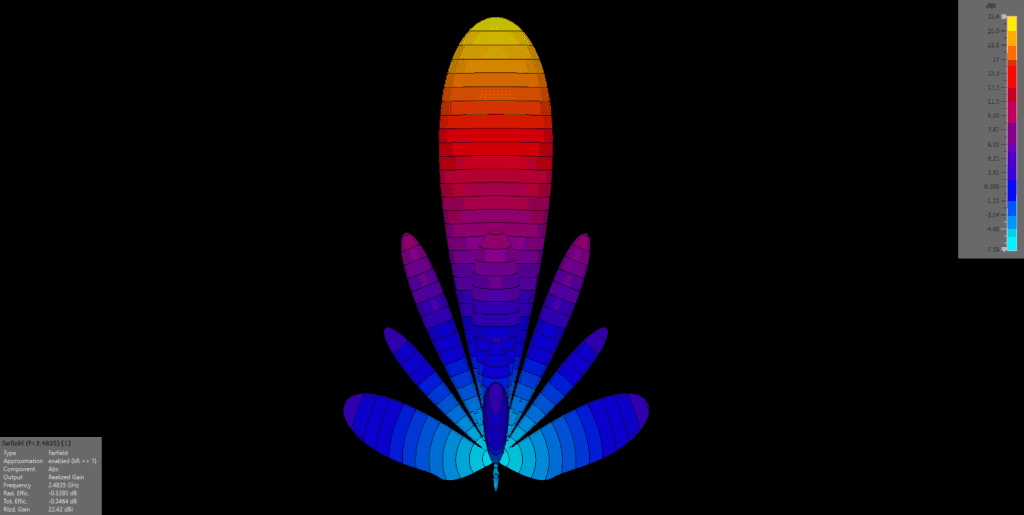

Діаграма спрямованості XL-V 24 (ракурс 2)
3D діаграма розподілу напруженості електромагнітного поля на частоті 2.4 ГГц

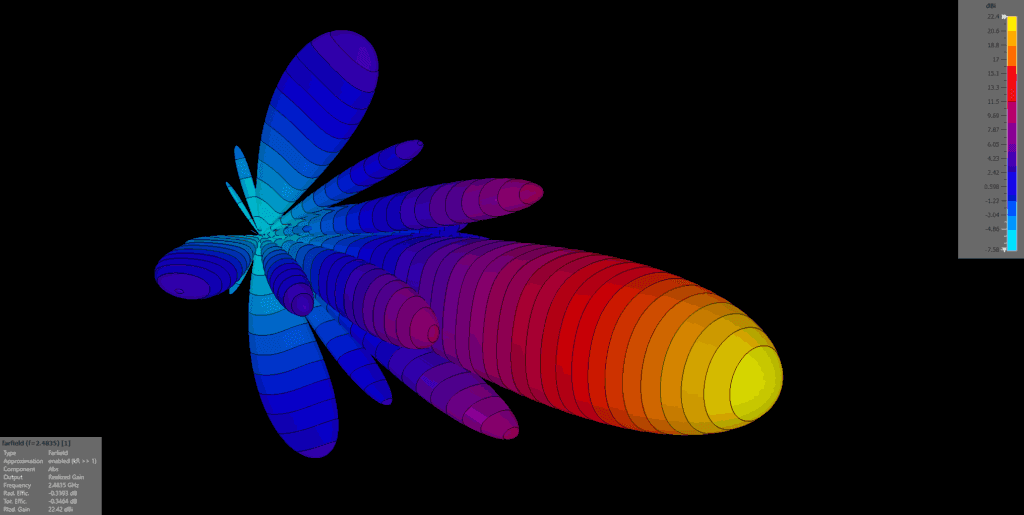

Діаграма спрямованості XL-V 24 (ракурс 3)
3D діаграма розподілу напруженості електромагнітного поля на частоті 2.4 ГГц
Reviews
Voices from the front
Real reviews from UAV operators about how COBRA antenna systems perform in combat.
«We had two combat sorties with the Cobra XL — a very powerful antenna. We hit targets at 18.5 km.»
«We just worked a control point at 24.7 km. With your antenna RSSI was 100% and the video was stable. Another of our drones on a different antenna could not reach that distance — the video dropped and the drone was lost. Your antenna is simply better — no exaggeration, there is none better.»
«
Still testing — very satisfied: we closed 25 km with a 100% link. Today we will test at 40 km.
